INA230AIDGST - Texas Instruments

Description: Current Monitor Regulator High/Low-Side 10mA 10-VSSOP

Download INA230AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

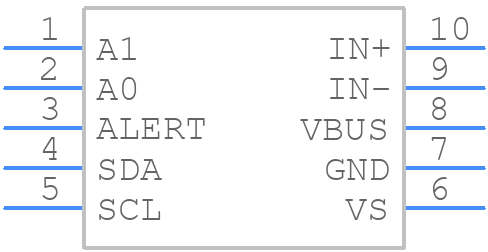

Symbol
INA230AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA230AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A_2024
click to zoom
3D Models
INA230AIDGST - Texas Instruments - 3D model - Small Outline Packages - DGS0010A_2024
click to zoom

INA230AIDGST Details

  • Manufacturer Part Number:

    INA230AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA230AIDGST Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VIN pin is 36V, but it's recommended to keep it below 33V for reliable operation.
  • The current sensing resistor value depends on the maximum current you expect in your application. A good starting point is to use the formula: RSENSE = (VFS/IMAX) * (1/0.005), where VFS is the full-scale voltage (e.g., 50mV) and IMAX is the maximum expected current.
  • The CAP pin is used to filter out high-frequency noise and improve the accuracy of the current measurement. A capacitor (typically 10nF to 100nF) should be connected between the CAP pin and GND to filter out noise and improve the signal-to-noise ratio.
  • To configure the INA230 for bidirectional current measurement, connect the SENSE pin to the load, and the VIN pin to the power supply. Set the DIR pin high to measure current flowing into the load, and set it low to measure current flowing out of the load.
  • The INA230 has a typical accuracy of ±1% over the operating temperature range of -40°C to 125°C. The accuracy may vary by ±0.1% per °C outside this range. Refer to the datasheet for detailed accuracy specifications.
