INA2321EA/250 - Texas Instruments

Description: microPower, Single-Supply, CMOS Instrumentation Amplifier

Download INA2321EA/250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

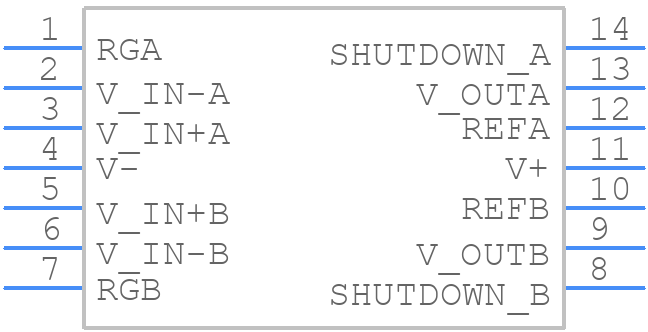

INA2321EA/250 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA2321EA/250 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
INA2321EA/250 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

INA2321EA/250 Details

  • Manufacturer Part Number:

    INA2321EA/250

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bandwidth (3dB)-Nom:

    0.5 MHz

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Input Offset Current-Max (IIO):

    0.00001 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Non-linearity-Max:

    0.01%

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage Limit-Max:

    7.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    5

  • Voltage Gain-Nom:

    25

  • Width:

    4.4 mm
