INA233AIDGST - Texas Instruments

Description: Current Sense Amplifiers High Accuracy Current, Voltage, Power and Energy Monitor With 1.8V I2C/PMBus 10-VSSOP -40 to 125

Download INA233AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

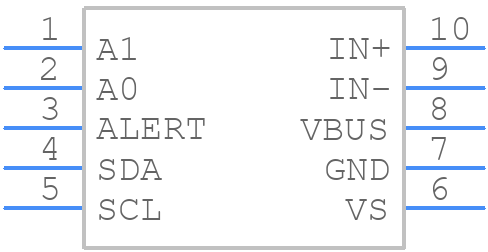

INA233AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA233AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP
click to zoom
3D Models
INA233AIDGST - Texas Instruments - 3D model - Small Outline Packages - VSSOP
click to zoom

INA233AIDGST Details

  • Manufacturer Part Number:

    INA233AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA233AIDGST Frequently Asked Questions (FAQs)

  • The maximum power dissipation of INA233AIDGST is 670mW at 25°C. However, it's recommended to keep the power dissipation below 500mW to ensure reliable operation.
  • To minimize noise and EMI, it's recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces as short as possible. Additionally, use a common-mode filter capacitor between the input pins and the ground to reduce common-mode noise.
  • The recommended input impedance for INA233AIDGST is between 1kΩ and 10kΩ. This ensures that the input signal is properly terminated and minimizes noise and distortion.
  • Yes, INA233AIDGST is rated for operation up to 125°C. However, it's recommended to derate the power dissipation and ensure proper thermal management to prevent overheating.
  • The gain of INA233AIDGST can be calibrated using an external resistor network. The gain is set by the ratio of the resistors, and the recommended values are provided in the datasheet. It's recommended to use 1% tolerance resistors to ensure accurate gain calibration.
