The maximum power dissipation of the INA234AIYBJR is 670mW at 25°C, but it can be derated to 560mW at 85°C.
To ensure accuracy in high-temperature applications, it's essential to consider the temperature coefficient of the device and to use a thermocouple or thermistor to monitor the temperature. Additionally, calibration and compensation techniques can be used to minimize temperature-related errors.
To minimize noise and EMI, it's recommended to place the INA234AIYBJR close to the signal source, use a ground plane, and keep the input traces as short as possible. Additionally, use a shielded cable or a twisted pair for the input connections, and avoid running digital and analog traces parallel to each other.
To protect the INA234AIYBJR from overvoltage and overcurrent conditions, use voltage regulators and current limiters in the power supply, and consider adding overvoltage protection (OVP) and overcurrent protection (OCP) circuits. Additionally, use a fuse or a polyfuse to limit the current in case of a fault.
The recommended input impedance for the INA234AIYBJR is 1kΩ or higher. A higher input impedance can affect the accuracy of the measurement by introducing noise and reducing the common-mode rejection ratio (CMRR). It's essential to match the input impedance to the source impedance to ensure accurate measurements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA234AIYBJR Overview

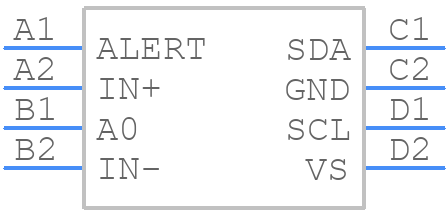

Use the download button to access the INA234AIYBJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
