INA237AIDGST - Texas Instruments

Description: Current Sense Amplifiers 85-V, 16-bit, I2C output current/voltage/power monitor with alert 10-VSSOP -40 to 125

Download INA237AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

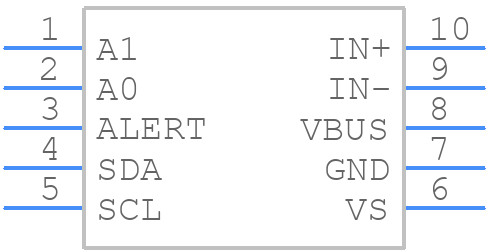

Symbol
INA237AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA237AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
INA237AIDGST - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

INA237AIDGST Details

  • Manufacturer Part Number:

    INA237AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA237AIDGST Frequently Asked Questions (FAQs)

  • The maximum power dissipation of INA237AIDGST is 670mW at 25°C. However, it's recommended to keep the junction temperature below 150°C to ensure reliability.
  • To minimize noise and ensure accurate measurements, it's recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog traces away from noisy digital traces.
  • The recommended input impedance for INA237AIDGST is 1kΩ to 10kΩ. This ensures that the input voltage is properly divided and the amplifier operates within its specified range.
  • While INA237AIDGST is capable of operating at high frequencies, its bandwidth is limited to 2.5kHz. For high-frequency applications, it's recommended to use a different amplifier with a higher bandwidth.
  • To calibrate INA237AIDGST, apply a known input voltage and adjust the gain and offset to achieve the desired output voltage. It's recommended to use a precision voltage source and a multimeter to ensure accurate calibration.
