INA253A3IPWR - Texas Instruments

Description: 80V, 15A precision integrated-shunt high-accuracy current sense amplifier w/ enhanced PWM rejection

Download INA253A3IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

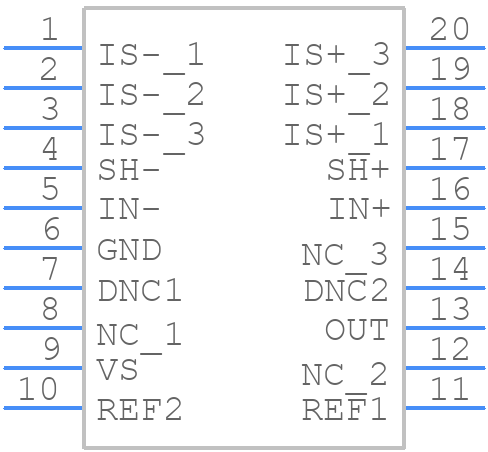

INA253A3IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA253A3IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
INA253A3IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

INA253A3IPWR Details

  • Manufacturer Part Number:

    INA253A3IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-12-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Common Mode Voltage-Max:

    80 V

  • Common-mode Reject Ratio-Min:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    15 µV

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    2.4 V/us

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Wideband:

    NO

  • Width:

    4.4 mm

INA253A3IPWR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is ±25V, but it's recommended to keep it within the common-mode voltage range of ±12V to ensure accurate measurements.
  • The power consumption of the INA253A3IPWR can be calculated by multiplying the supply voltage (VCC) by the quiescent current (Iq). For example, if VCC is 3.3V and Iq is 1.5mA, the power consumption would be 3.3V x 1.5mA = 4.95mW.
  • The CAP pin is used to connect a decoupling capacitor to filter out high-frequency noise and improve the accuracy of the measurements. A 10nF to 100nF ceramic capacitor is recommended to be connected between the CAP pin and GND.
  • The INA253A3IPWR is designed to measure DC currents, but it can also be used to measure AC currents with some limitations. The device can measure AC currents up to 100kHz, but the accuracy may degrade at higher frequencies. Additionally, the device may require external filtering or signal conditioning to remove noise and aliasing effects.
  • To ensure the accuracy of the current measurements, it's essential to follow proper layout and design guidelines, such as keeping the sense lines short and away from noise sources, using a low-impedance current shunt, and minimizing the voltage drop across the shunt. Additionally, calibrating the device and using a high-precision voltage reference can also improve the accuracy of the measurements.
