The maximum voltage that can be applied to the input pins is 26.5V, which is the absolute maximum rating. However, for normal operation, the recommended maximum input voltage is 24V.
The power dissipation of the INA253A3QPWRQ1 can be calculated using the formula: Pd = (Vcc x Icc) + (Vin x Iin), where Vcc is the supply voltage, Icc is the supply current, Vin is the input voltage, and Iin is the input current. You can find the values for Icc and Iin in the datasheet.
For optimal performance, it is recommended to follow the layout and placement guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
The INA253A3QPWRQ1 is rated for operation up to 125°C, but the device's performance and accuracy may degrade at high temperatures. It is recommended to derate the device's performance and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
Common issues with the INA253A3QPWRQ1 can often be troubleshooted by checking the input and output connections, ensuring proper power supply decoupling, and verifying that the device is operated within its recommended specifications. Additionally, checking for noise and EMI sources, and ensuring proper layout and placement, can also help resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA253A3QPWRQ1 Overview

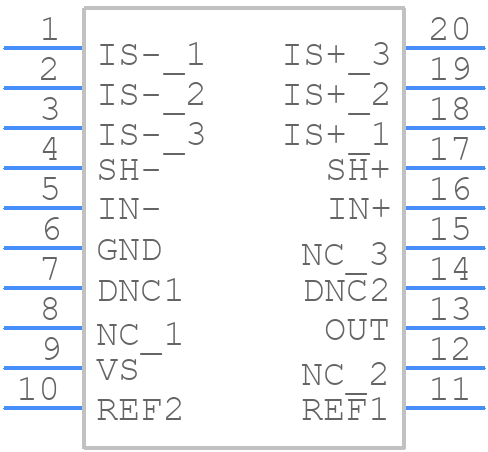

Use the download button to access the INA253A3QPWRQ1 schematic symbol, PCB footprint, and 3D model.
