INA310A2IDGKR - Texas Instruments

Description: Current Sense Amplifiers -4-V to 110-V 1.3-M Hz ultra-precise cu

Download INA310A2IDGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

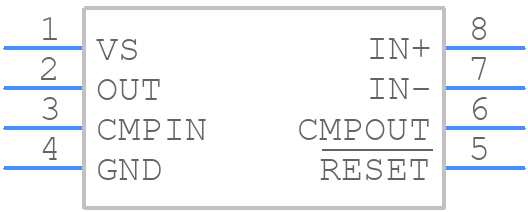

INA310A2IDGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA310A2IDGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK0008A
click to zoom
3D Models
INA310A2IDGKR - Texas Instruments - 3D model - Small Outline Packages - DGK0008A
click to zoom

INA310A2IDGKR Details

  • Manufacturer Part Number:

    INA310A2IDGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    30 µA

  • Bias Current-Max (IIB) @25C:

    30 µA

  • Common-mode Reject Ratio-Min:

    140 dB

  • Common-mode Reject Ratio-Nom:

    160 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    20 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    2.25 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1300

  • Wideband:

    NO

  • Width:

    3 mm

INA310A2IDGKR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the INA310A2IDGKR is ±650mV, which is the maximum differential input voltage. Exceeding this voltage may cause damage to the device.
  • To minimize noise and ensure accurate measurements, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping the input traces as short as possible. Additionally, it is recommended to use a low-noise power supply and to decouple the power supply lines with capacitors.
  • The recommended output filter capacitor value for the INA310A2IDGKR is 10nF to 100nF. This capacitor helps to filter out high-frequency noise and improve the stability of the output voltage.
  • The INA310A2IDGKR is rated for operation from -40°C to 125°C. However, the device's accuracy and stability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for more information on using the device in high-temperature environments.
  • The INA310A2IDGKR does not require calibration for accurate measurements. The device has an internal calibration circuit that ensures accurate measurements. However, it is recommended to follow the application notes and datasheet recommendations for setting the gain and offset adjustments to optimize the device's performance.
