Description:Current Sense Amplifiers 26V current sense amplifier with integrated over-current comparator for cost-sensitive applications 10-VSSOP -40 to 125
The maximum power dissipation of the INA381A2IDGST is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 315mW at 25°C with a thermal resistance of 125°C/W. However, it's recommended to consult the thermal design and power dissipation calculations in the datasheet to ensure safe operation.
To minimize noise and ensure accurate measurements, it's recommended to follow proper PCB layout techniques such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, the INA381A2IDGST datasheet provides specific layout recommendations, such as keeping the input and output traces short and away from each other, and using a common-mode filter capacitor.
The recommended input voltage range for the INA381A2IDGST is ±20mV to ±500mV, depending on the gain setting. However, the device can tolerate input voltages up to ±1.2V without damage. It's recommended to consult the datasheet for specific input voltage range recommendations based on the desired gain setting and application.
The INA381A2IDGST does not require calibration for accurate measurements. The device has an internal calibration circuit that sets the gain and offset of the amplifier. However, it's recommended to follow proper measurement techniques, such as using a high-impedance input source and minimizing noise and interference, to ensure accurate measurements.
The typical settling time of the INA381A2IDGST is dependent on the gain setting and the input signal frequency. According to the datasheet, the settling time is typically around 1.5μs to 3.5μs for a gain of 1 to 100, respectively. However, it's recommended to consult the datasheet for specific settling time characteristics based on the desired gain setting and application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA381A2IDGST Overview

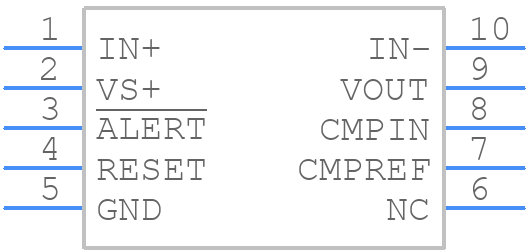

Use the download button to access the INA381A2IDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA38,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
