The maximum power dissipation of the INA381A4IDGSR is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C with a thermal resistance of 125°C/W. However, it's recommended to derate the power dissipation based on the operating temperature to ensure reliable operation.
To minimize noise and ensure accurate measurements, it's recommended to follow proper PCB layout practices. Keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from noise sources. Additionally, use a low-ESR capacitor for decoupling and place it close to the device. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-current carrying traces.
The recommended input voltage range for the INA381A4IDGSR is ±20mV to ±500mV. However, the device can operate with input voltages up to ±1V, but with reduced accuracy and linearity. It's recommended to stay within the recommended input range for optimal performance.
The INA381A4IDGSR does not require calibration. It's a plug-and-play device that provides accurate measurements out of the box. However, it's recommended to follow proper PCB layout practices and to use a low-noise power supply to ensure optimal performance.
The typical settling time of the INA381A4IDGSR is 10µs to 1% of the final value. However, this can vary depending on the input signal frequency, amplitude, and the output load. It's recommended to consult the datasheet for more information on the settling time and to ensure that the device meets the requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA381A4IDGSR Overview

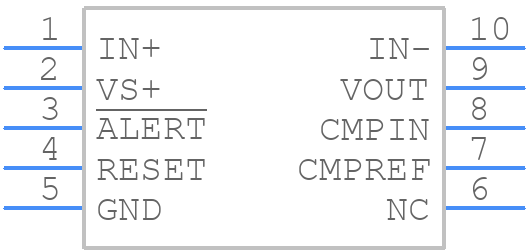

Use the download button to access the INA381A4IDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA38,
