The maximum voltage that can be applied to the input pins is 26.5V, which is the absolute maximum rating. However, the recommended maximum voltage is 24V to ensure accurate measurements.
The gain error can be calculated using the formula: Gain Error (%) = (Vout / (Gain x Vin)) x 100, where Vout is the output voltage, Gain is the gain setting, and Vin is the input voltage.
The INA4230 has a temperature coefficient of ±50 ppm/°C, which means that the gain and offset drift by ±50 ppm for every degree Celsius change in temperature. This can affect the accuracy of the measurements, especially in high-temperature applications.
The INA4230 is designed to measure DC signals, but it can also be used to measure AC signals with some limitations. The device has a bandwidth of 2.5 kHz, which means it can measure AC signals up to 2.5 kHz. However, the accuracy may degrade at higher frequencies due to the device's internal filtering.
To minimize noise and interference, it is recommended to follow good PCB layout practices, such as keeping the input traces short and away from noise sources, using a ground plane, and placing the INA4230 close to the input signal source. Additionally, using shielding and filtering can help to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA4230AIYBJR Overview

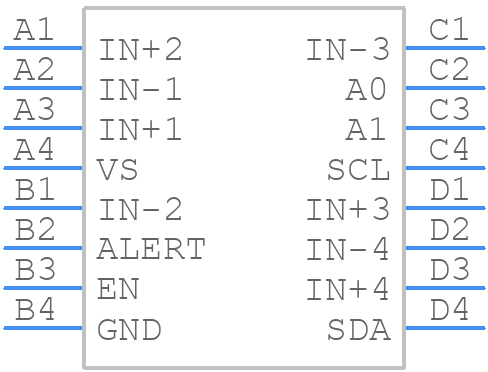

Use the download button to access the INA4230AIYBJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA42,
or try a keyword search, such as Power Management Circuits
