Part Image

INA4235AIYBJR - Texas Instruments

Description: urrent & Power Monitors & Regulators Quad channel, 16-bit, ultra-precise, current, voltage, power and energy monitor with IC Interface 16-DSBGA -40 to 125

Download INA4235AIYBJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

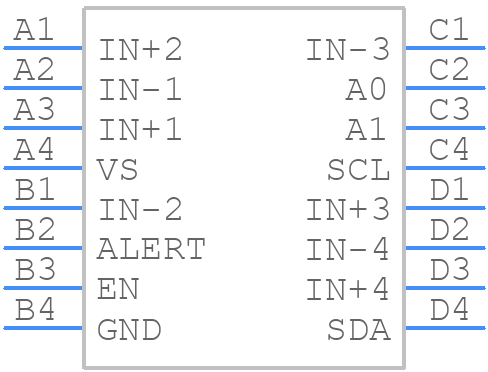

INA4235AIYBJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA4235AIYBJR - Texas Instruments PCB footprint - BGA - BGA - YBJ0016-C01
click to zoom
3D Models
INA4235AIYBJR - Texas Instruments - 3D model - BGA - YBJ0016-C01
click to zoom

INA4235AIYBJR Details

  • Manufacturer Part Number:

    INA4235AIYBJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,14

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.35 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

INA4235AIYBJR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is 26.5V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to the supply voltage (VCC) + 0.3V to ensure proper operation.
  • The gain of the INA4235 is determined by the ratio of the resistors R1 and R2. The gain can be calculated using the formula: Gain = (R2 / R1) + 1. For example, if R1 = 1kΩ and R2 = 2kΩ, the gain would be 3.
  • The REF pin is a reference input that allows the user to set the output voltage of the INA4235 to a specific level. This can be useful for applications where a specific output voltage is required. To use the REF pin, connect it to a voltage source or a voltage divider network that sets the desired output voltage.
  • Yes, the INA4235 can be used with a single supply voltage. However, the input common-mode voltage range is limited to VCC - 1.5V to VCC + 0.3V. This means that the input voltage should be within this range to ensure proper operation.
  • The INA4235 has a power-on reset (POR) circuit that ensures the output is in a high-impedance state during power-up. This prevents any output voltage from being present until the supply voltage reaches a minimum of 2.7V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA4235AIYBJR Overview

Use the download button to access the INA4235AIYBJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA42, or try a keyword search, such as Power Management Circuits
