INA780BIDEKR - Texas Instruments

Description: Current & Power Monitors & Regulators 85-V 16-bit IC-output digital power monitor with 400-uohm EZShunt Technology 15-VQFN -40 to 125

Download INA780BIDEKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

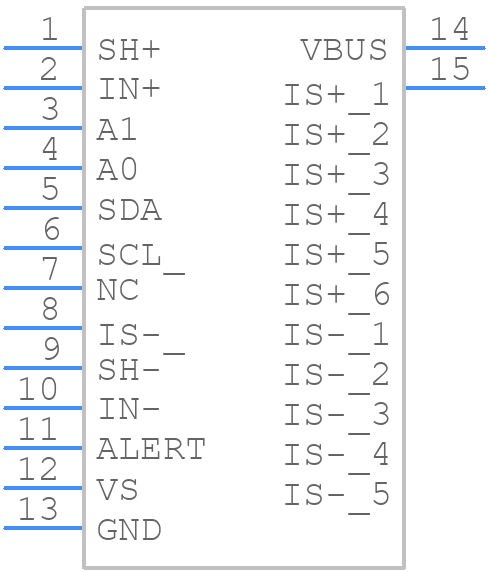

INA780BIDEKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA780BIDEKR - Texas Instruments PCB footprint - Other - Other - DEK0015A
click to zoom
3D Models
INA780BIDEKR - Texas Instruments - 3D model - Other - DEK0015A
click to zoom

INA780BIDEKR Details

  • Manufacturer Part Number:

    INA780BIDEKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PQCC-N15

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC15(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    6 mm

INA780BIDEKR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the INA780 is 36V. However, it's recommended to operate within the specified common-mode voltage range of ±25V to ensure accurate measurements.
  • The gain resistor (Rg) value depends on the desired gain and the input voltage range. Use the formula Rg = (Vref / (2 * Vcm * Gain)) to calculate the required gain resistor value, where Vref is the reference voltage, Vcm is the common-mode voltage, and Gain is the desired gain.
  • The capacitor on the REF pin is used to filter out noise and provide a stable reference voltage. A 10nF to 100nF capacitor is recommended to ensure accurate measurements and to prevent oscillations.
  • Yes, the INA780 can be used in a single-supply configuration. However, the input common-mode voltage range will be limited to Vcc/2 ± 1.5V. Additionally, the output voltage swing will be reduced, and the device may not be able to reach the rail-to-rail output voltage.
  • To minimize noise and ensure accurate measurements, follow these layout guidelines: keep the input and output traces separate, use a ground plane, place the gain resistor close to the INA780, and avoid running digital signals near the analog signals.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA780BIDEKR Overview

Use the download button to access the INA780BIDEKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA78, or try a keyword search, such as Operational Amplifiers
