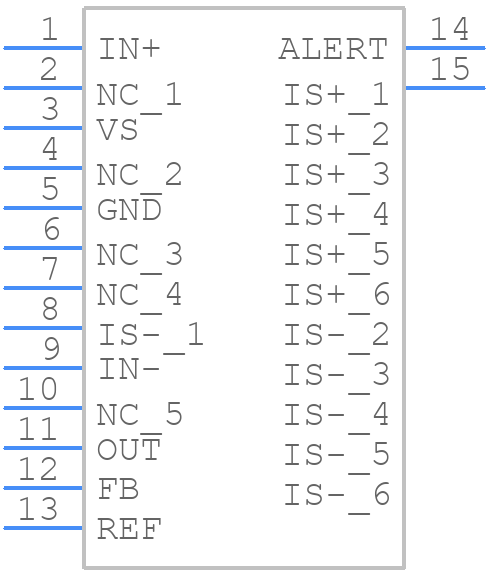

INA790BIDEKR - Texas Instruments

INA790BIDEKR Details

• Manufacturer Part Number:

  INA790BIDEKR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  90 µA

• Bias Current-Max (IIB) @25C:

  90 µA

• Common-mode Reject Ratio-Min:

  130 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  100 µV

• JESD-30 Code:

  S-PQCC-N15

• JESD-609 Code:

  e4

• Low-Bias:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC15(UNSPEC)

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Slew Rate-Nom:

  1.8 V/us

• Supply Current-Max:

  4.5 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Wideband:

  NO
