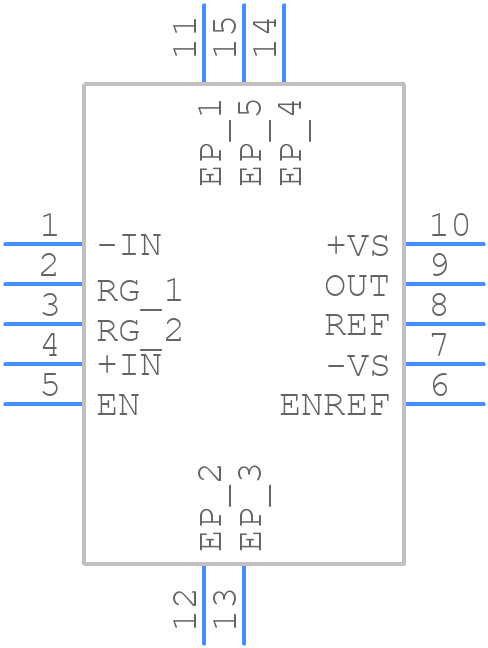

INA826SIDRCT - Texas Instruments

INA826SIDRCT Details

• Manufacturer Part Number:

  INA826SIDRCT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2017-06-11

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.095 µA

• Bandwidth (3dB)-Nom:

  1 MHz

• Bias Current-Max (IIB) @25C:

  0.065 µA

• Common-mode Reject Ratio-Min:

  120 dB

• Input Offset Current-Max (IIO):

  0.01 µA

• Input Offset Voltage-Max:

  150 µV

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e4

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.002%

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Slew Rate-Nom:

  1 V/us

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Gain-Max:

  1000

• Voltage Gain-Min:

  1

• Width:

  3 mm
