INN2023K-TL footprint, schematic symbol and 3D model by Power Integrations

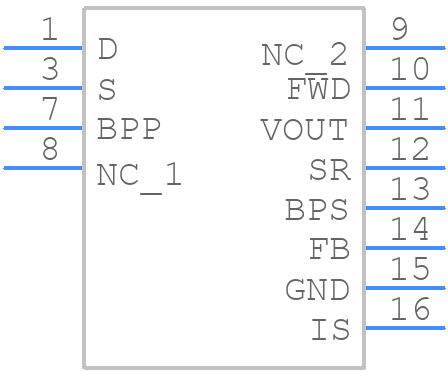

Symbol

click to zoom

PCB Footprints

INN2023K-TL - Power Integrations PCB footprint - Other - Other - ESOP-R16B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for INN2023K-TL
Part Number INN2023K-TL
Manufacturer Power Integrations
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - ESOP-R16B
Released Date Dec 21, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

INN2023K-TL Details

Manufacturer Part Number:
INN2023K-TL
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Manufacturer:
Power Integrations
YTEOL:
8
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
Moisture Sensitivity Level:
3

INN2023K-TL Frequently Asked Questions (FAQs)

The maximum operating temperature range for the INN2023K-TL is -40°C to 125°C.
Proper cooling can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
A recommended PCB layout for the INN2023K-TL includes a solid ground plane, short and wide traces for the high-current paths, and a heat sink attached to the device.
Overvoltage protection can be achieved using a TVS diode or a zener diode, while overcurrent protection can be achieved using a fuse or a current-sensing resistor.
The recommended input capacitor value for the INN2023K-TL is 10uF to 22uF, with a voltage rating of at least 25V.

Trust Checks

Expert Contribution

System Verified

Community Approved

INN2023K-TL Overview

Use the download button to access the INN2023K-TL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like INN20, or try a keyword search, such as Power Management Circuits
