IPB060N15N5ATMA1 - Infineon

Description: OptiMOSª5Power-Transistor,150V

Download IPB060N15N5ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

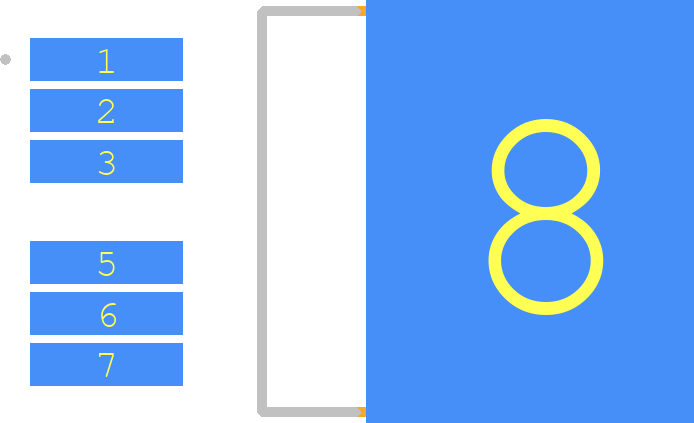

IPB060N15N5ATMA1 - Infineon PCB footprint - Other - Other - D2Pak-7Pin
click to zoom
3D Models
IPB060N15N5ATMA1 - Infineon  - 3D model - Other - D2Pak-7Pin
click to zoom

IPB060N15N5ATMA1 Details

  • Manufacturer Part Number:

    IPB060N15N5ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    190 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    150 V

  • Drain Current-Max (ID):

    136 A

  • Drain-source On Resistance-Max:

    0.006 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    544 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPB060N15N5ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPB060N15N5ATMA1 is -55°C to 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IPB060N15N5ATMA1 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, IPB060N15N5ATMA1 is suitable for high-frequency switching applications up to 100 kHz, but the user should ensure that the device is properly cooled and the gate drive is optimized for the specific application.
  • Overvoltage protection can be achieved using a TVS diode or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
