IPB180N03S4L-H0 - Infineon

Description: Infineon IPB180N03S4L-H0 N-channel MOSFET Transistor, 180 A, 30 V, 7-Pin TO-263

Download IPB180N03S4L-H0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

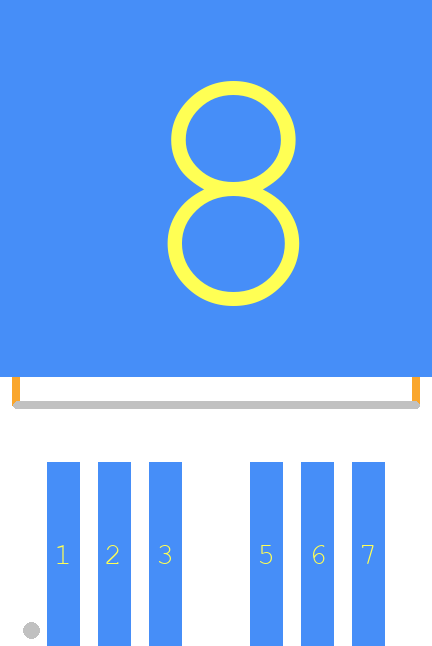

IPB180N03S4L-H0 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
IPB180N03S4L-H0 - Infineon  - 3D model - Other - PG-TO263-7-3_2
click to zoom

IPB180N03S4L-H0 Details

  • Manufacturer Part Number:

    IPB180N03S4L-H0

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-263

  • Package Description:

    GREEN, PLASTIC PACKAGE-7

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    ULTRA-LOW RESISTANCE

  • Avalanche Energy Rating (Eas):

    980 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    180 A

  • Drain-source On Resistance-Max:

    0.00095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

IPB180N03S4L-H0 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPB180N03S4L-H0 is -55°C to 175°C, as specified in the datasheet.
  • To ensure safe operating area (SOA) for the IPB180N03S4L-H0, follow the guidelines provided in the datasheet, including limiting the voltage and current within the specified ratings, and ensuring proper thermal management.
  • The recommended PCB layout for the IPB180N03S4L-H0 involves using a solid copper plane for the drain pin, keeping the source and gate traces short and wide, and ensuring good thermal conductivity to the heat sink or PCB.
  • To handle ESD protection for the IPB180N03S4L-H0, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices if necessary.
  • The thermal impedance (Zth) and thermal resistance (Rth) values for the IPB180N03S4L-H0 can be found in the datasheet, and are typically provided in units of K/W or °C/W.
