IPB180N04S4-H0 - Infineon

Description: MOSFET N-Ch 40V 180A D2PAK-6 OptiMOS-T2

Download IPB180N04S4-H0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

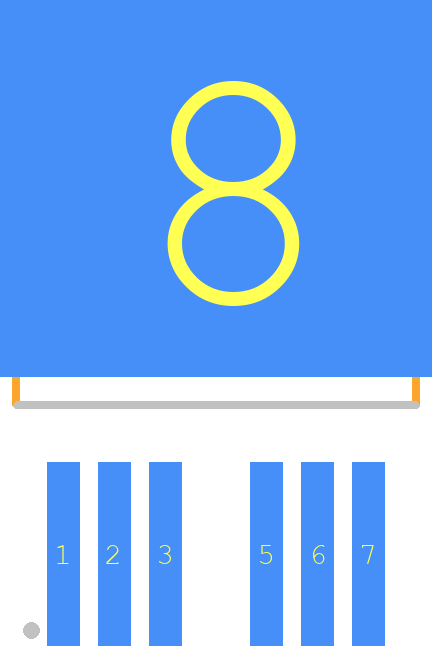

IPB180N04S4-H0 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
IPB180N04S4-H0 - Infineon  - 3D model - Other - PG-TO263-7-3_2
click to zoom

IPB180N04S4-H0 Details

  • Manufacturer Part Number:

    IPB180N04S4-H0

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-263

  • Package Description:

    GREEN, PLASTIC, TO-263, 7 PIN

  • Pin Count:

    7

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    ULTRA-LOW RESISTANCE

  • Avalanche Energy Rating (Eas):

    850 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    180 A

  • Drain-source On Resistance-Max:

    0.0011 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

IPB180N04S4-H0 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPB180N04S4-H0 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to ensure proper cooling and heat dissipation in the system.
  • The recommended gate resistor value for the IPB180N04S4-H0 is typically in the range of 10 ohms to 100 ohms, depending on the specific application and switching frequency.
  • Yes, the IPB180N04S4-H0 is suitable for high-frequency switching applications up to 100 kHz, but it's essential to follow the recommended layout and design guidelines to minimize parasitic inductance and ensure reliable operation.
  • To protect the IPB180N04S4-H0, it's recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and to ensure that the device is operated within its recommended safe operating area (SOA).
