IPB180N06S4-H1 - Infineon

Description: Infineon IPB180N06S4-H1 N-channel MOSFET Transistor, 180 A, 60 V, 7-Pin TO-263

Download IPB180N06S4-H1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

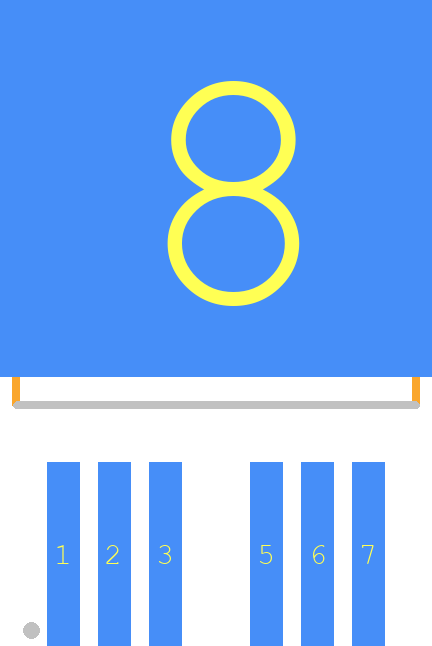

PCB Footprints
IPB180N06S4-H1 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
IPB180N06S4-H1 - Infineon  - 3D model - Other - PG-TO263-7-3_2
click to zoom

IPB180N06S4-H1 Details

  • Manufacturer Part Number:

    IPB180N06S4-H1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-263

  • Pin Count:

    3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    700 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    180 A

  • Drain-source On Resistance-Max:

    0.0017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

IPB180N06S4-H1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IPB180N06S4-H1 is 150°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via structure to dissipate heat efficiently.
  • The maximum current rating of the IPB180N06S4-H1 is 180 A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the IPB180N06S4-H1 from overvoltage and overcurrent, a suitable voltage clamp or transient voltage suppressor (TVS) should be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
  • The recommended gate drive voltage for the IPB180N06S4-H1 is between 10 V and 15 V, with a maximum gate-source voltage of ±20 V.
