IPB180P04P4L02ATMA1 - Infineon

Description: MOSFET P-Ch -40V -180A D2PAK-6 OptiMOS-P2.,

Download IPB180P04P4L02ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

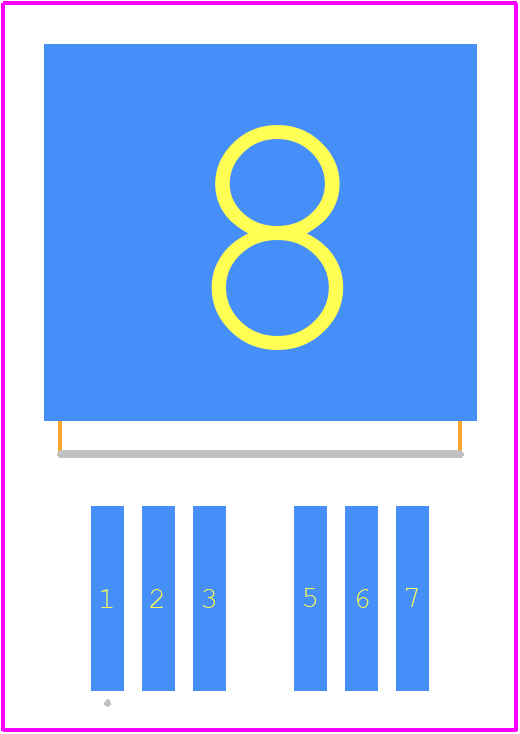

IPB180P04P4L02ATMA1 - Infineon PCB footprint - Other - Other - IPB180P04P4L02ATMA1-3
click to zoom

IPB180P04P4L02ATMA1 Details

  • Manufacturer Part Number:

    IPB180P04P4L02ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC PACKAGE-7/6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    84 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    180 A

  • Drain-source On Resistance-Max:

    0.0039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPB180P04P4L02ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPB180P04P4L02ATMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • A recommended PCB layout for IPB180P04P4L02ATMA1 includes a solid ground plane, wide power traces, and a decoupling capacitor of at least 10uF placed close to the device.
  • Yes, IPB180P04P4L02ATMA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • To protect IPB180P04P4L02ATMA1 from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind.
