IPB180P04P4L02ATMA2 - Infineon

Description: P-Channel 40 V 180A (Tc) 150W (Tc) Surface Mount PG-TO263-7-3 , 2.2V @ 410µA , 18700 pF , -55°C ~ 175°C

Download IPB180P04P4L02ATMA2 Model

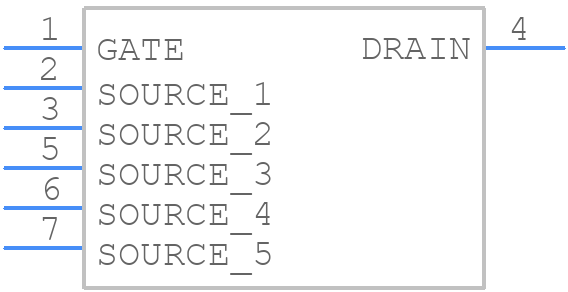

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPB180P04P4L02ATMA2 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2026-1.15
click to zoom
3D Models
IPB180P04P4L02ATMA2 - Infineon  - 3D model - Other - PG-TO263-7-3_2026-1.15
click to zoom

IPB180P04P4L02ATMA2 Details

  • Manufacturer Part Number:

    IPB180P04P4L02ATMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    84 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    200 A

  • Drain-source On Resistance-Max:

    0.0039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    360 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    150 W

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Reference Standard:

    AEC-Q101; IEC-68-1

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPB180P04P4L02ATMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPB180P04P4L02ATMA2 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • A recommended PCB layout for IPB180P04P4L02ATMA2 includes a solid ground plane, wide power traces, and a decoupling capacitor of at least 10uF placed close to the device.
  • Yes, IPB180P04P4L02ATMA2 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • To protect IPB180P04P4L02ATMA2 from ESD, handle the device by the body, use an ESD wrist strap or mat, and ensure all equipment is grounded.
