IPDD60R050G7XTMA1 - Infineon

Description: MOSFET HIGH POWER_NEW

Download IPDD60R050G7XTMA1 Model

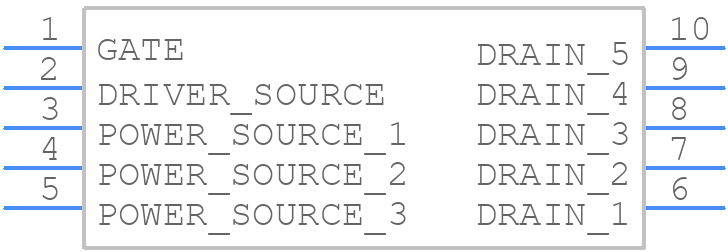

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPDD60R050G7XTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - IPDD60R050G7XTMA1
click to zoom
3D Models
IPDD60R050G7XTMA1 - Infineon  - 3D model - Small Outline Packages - IPDD60R050G7XTMA1
click to zoom

IPDD60R050G7XTMA1 Details

  • Manufacturer Part Number:

    IPDD60R050G7XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    159 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    47 A

  • Drain-source On Resistance-Max:

    0.05 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    278 W

  • Pulsed Drain Current-Max (IDM):

    135 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPDD60R050G7XTMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPDD60R050G7XTMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 0.5 K/W, and ensuring good thermal contact between the IGBT and heat sink.
  • The recommended gate resistor value for IPDD60R050G7XTMA1 is between 10 Ω to 100 Ω, depending on the specific application and switching frequency.
  • Yes, IPDD60R050G7XTMA1 can be used in a parallel configuration, but it's essential to ensure that the IGBTs are matched and the gate drive circuits are properly synchronized.
  • The maximum allowable voltage transient for IPDD60R050G7XTMA1 is ±10% of the maximum rated voltage (600V).
