IPDD60R125G7XTMA1 - Infineon

Description: MOSFET HIGH POWER_NEW

Download IPDD60R125G7XTMA1 Model

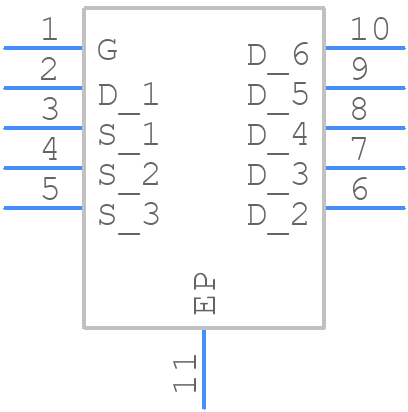

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPDD60R125G7XTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-HDSOP-10-1
click to zoom
3D Models
IPDD60R125G7XTMA1 - Infineon  - 3D model - Small Outline Packages - PG-HDSOP-10-1
click to zoom

IPDD60R125G7XTMA1 Details

  • Manufacturer Part Number:

    IPDD60R125G7XTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    64 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.125 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PDSO-G10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    120 W

  • Pulsed Drain Current-Max (IDM):

    54 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPDD60R125G7XTMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPDD60R125G7XTMA1 is -55°C to 175°C, as specified in the datasheet.
  • To ensure safe operating area (SOA), follow the guidelines in the datasheet, considering factors like voltage, current, and temperature. Additionally, use a thermal model to simulate the device's behavior under various operating conditions.
  • The recommended gate drive voltage for the IPDD60R125G7XTMA1 is between 10V and 15V, as specified in the datasheet. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency.
  • To minimize power losses, optimize the gate drive circuitry, ensure proper thermal management, and consider using a low-loss gate driver IC. Additionally, consider using a MOSFET with a lower RDS(on) value, like the IPDD60R125G7XTMA1, which has a low RDS(on) of 60mΩ.
  • Yes, the IPDD60R125G7XTMA1 is suitable for high-frequency switching applications due to its low gate charge (Qg) and low output capacitance (Coss). However, the maximum switching frequency depends on the specific application and the device's thermal performance.
