- Part Number IPDD60R150G7XTMA1
- Manufacturer Infineon
- Pin Count 10
- Part Category MOSFET (N-Channel)
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PG-HDSOP-10-1
- Released Date Oct 23, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IPDD60R150G7XTMA1 Details
-
Manufacturer Part Number:
IPDD60R150G7XTMA1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
HDSOP-10-1, 10 PIN
-
Country Of Origin:
Austria, Germany, Malaysia
-
ECCN Code:
EAR99
-
Factory Lead Time:
17 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
Avalanche Energy Rating (Eas):
53 mJ
-
Case Connection:
DRAIN
IPDD60R150G7XTMA1 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the IPDD60R150G7XTMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within a temperature range of -20°C to 125°C for optimal performance and reliability.
-
Proper thermal management is crucial for the IPDD60R150G7XTMA1. Ensure good thermal contact between the module and the heat sink, use a suitable thermal interface material, and maintain a low thermal resistance. Additionally, consider using a fan or other cooling system to keep the module within the recommended temperature range.
-
The recommended gate resistance value for the IPDD60R150G7XTMA1 is between 10 ohms and 20 ohms. This value helps to prevent oscillations and ensures stable operation. However, the optimal gate resistance value may vary depending on the specific application and circuit design.
-
Yes, the IPDD60R150G7XTMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are designed to handle the increased current. Additionally, consider the thermal management and cooling requirements for the parallel configuration.
-
The recommended switching frequency for the IPDD60R150G7XTMA1 depends on the specific application and circuit design. However, as a general guideline, Infineon recommends a maximum switching frequency of 20 kHz for this module. Higher switching frequencies may lead to increased losses and reduced reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
IPDD60R150G7XTMA1 Overview

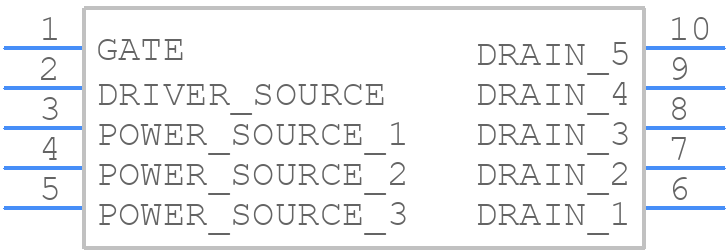

Use the download button to access the IPDD60R150G7XTMA1 schematic symbol, PCB footprint, and 3D model.
