The maximum operating temperature of the IPD60R010S7 is 175°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -40°C to 150°C for optimal performance and reliability.
To ensure proper cooling, it's essential to provide a sufficient heat sink and thermal interface material. The datasheet recommends a thermal resistance of less than 1 K/W for the heat sink. Additionally, ensure good airflow around the device and avoid thermal hotspots.
The recommended gate drive voltage for the IPD60R010S7 is between 10 V and 15 V. However, the device can tolerate gate voltages up to 20 V. It's essential to ensure the gate drive voltage is within the recommended range to prevent damage and ensure reliable operation.
To protect the IPD60R010S7 from overvoltage and overcurrent, it's recommended to use a suitable voltage regulator and overcurrent protection circuit. Additionally, consider using a TVS (Transient Voltage Suppressor) diode to protect the device from voltage spikes and transients.
The maximum allowed drain-source voltage for the IPD60R010S7 is 600 V. Exceeding this voltage can cause damage to the device and affect its reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPDQ60R010S7 Overview

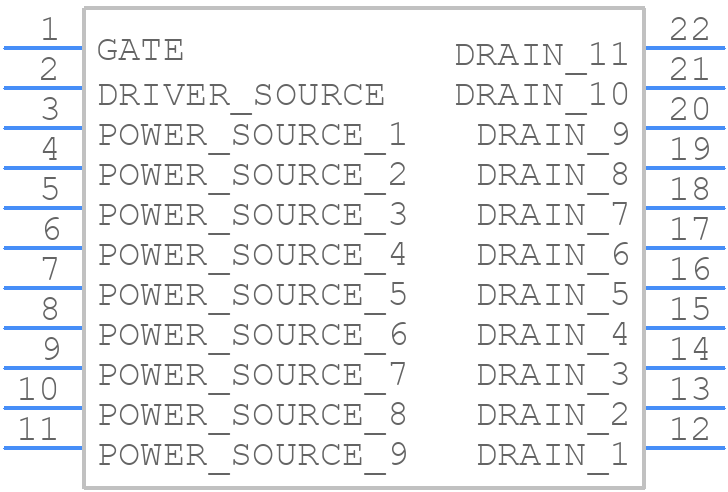

Use the download button to access the IPDQ60R010S7 schematic symbol and PCB footprint.
