- Part Number IPS8160HQ
- Manufacturer STMicroelectronics
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN48L
- Released Date Jan 18, 2023
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
IPS8160HQ Details
-
Manufacturer Part Number:
IPS8160HQ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
25 Weeks
-
Manufacturer:
STMicroelectronics
-
YTEOL:
9
-
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
IPS8160HQ Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
-
The IPS8160HQ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN5323 provides a detailed example of how to implement overcurrent protection.
-
The IPS8160HQ is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and power dissipation. It's recommended to consult with STMicroelectronics' technical support for specific guidance.
-
Yes, the IPS8160HQ is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of packages that meet the needs of these applications.
-
STMicroelectronics provides a troubleshooting guide in the application note AN5323, which includes steps for identifying and resolving common issues with the IPS8160HQ. Additionally, STMicroelectronics' technical support is available to provide further assistance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
IPS8160HQ Overview

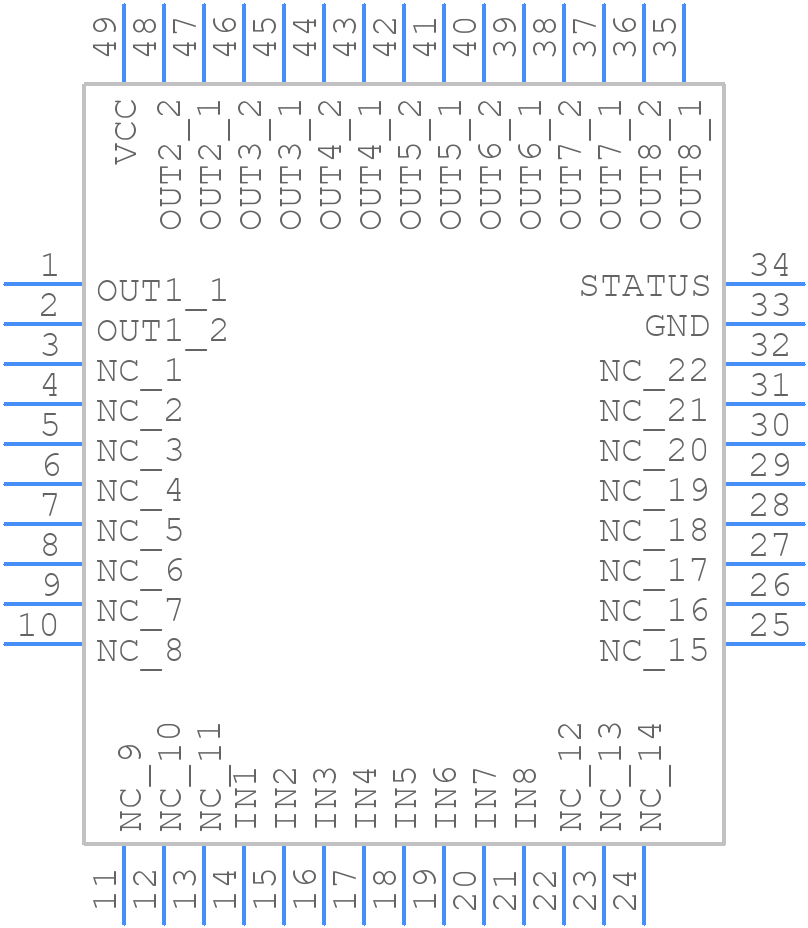

Use the download button to access the IPS8160HQ schematic symbol, PCB footprint, and 3D model.
