IRF100P219XKMA1 - Infineon

Description: MOSFET TRENCH >=100V IR MOSFET - StrongIRFET 1.4mohm-1.7mohm

Download IRF100P219XKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IRF100P219XKMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

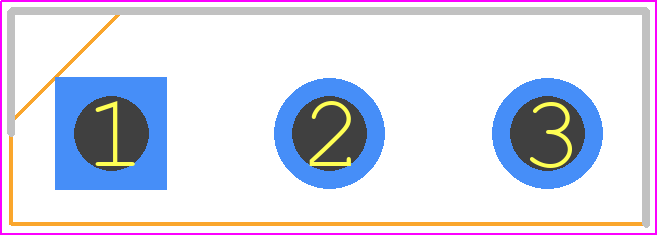

IRF100P219XKMA1 - Infineon PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 3-Pin TO-247AC
click to zoom
3D Models
IRF100P219XKMA1 - Infineon - 3D model - Transistor Outline, Vertical - 3-Pin TO-247AC
click to zoom

IRF100P219XKMA1 Details

  • Manufacturer Part Number:

    IRF100P219XKMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    464 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    195 A

  • Drain-source On Resistance-Max:

    0.0017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-247AC

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    780 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF100P219XKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF100P219XKMA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring junction temperature.
  • The recommended gate drive voltage for the IRF100P219XKMA1 is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the IRF100P219XKMA1 from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in a static-protective environment.
  • The maximum allowable power dissipation for the IRF100P219XKMA1 is 150W, but this value can be derated based on the operating temperature and other factors.
