IRMCF183MTR - Infineon

Description: INFINEON - IRMCF183MTR - Motor Controller, Sensorless, Three Phase AC, 1 Output, 3.3 V Supply, 120 MHz, 52 KB Flash, QFN-32

Download IRMCF183MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

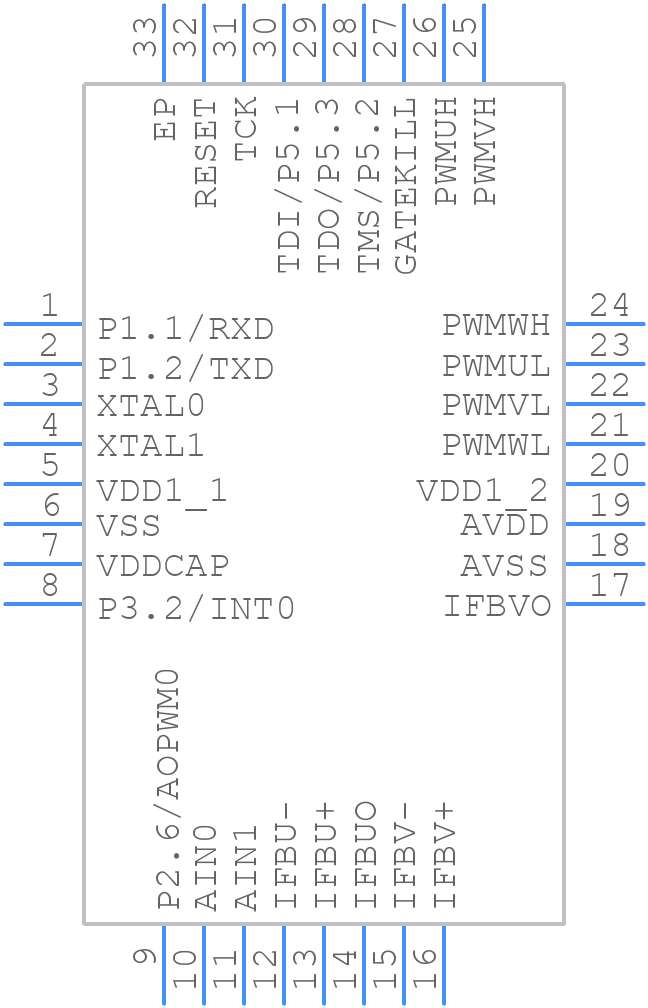

Symbol
IRMCF183MTR - Infineon - PCB symbol
click to zoom
PCB Footprints
IRMCF183MTR - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32_2021
click to zoom
3D Models
IRMCF183MTR - Infineon - 3D model - Quad Flat No-Lead - QFN32_2021
click to zoom

IRMCF183MTR Details

  • Manufacturer Part Number:

    IRMCF183MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    QFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

IRMCF183MTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRMCF183MTR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring junction temperature.
  • The recommended gate drive voltage for the IRMCF183MTR is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the IRMCF183MTR, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and ensure that the device is operated within its specified maximum ratings.
  • For optimal performance and thermal management, follow Infineon's recommended PCB layout and thermal design guidelines, which include using a multi-layer PCB, thermal vias, and a heat sink.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRMCF183MTR Overview

Use the download button to access the IRMCF183MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRMCF, or try a keyword search, such as Motion Control Electronics
