IRS2052MTRPBF - Infineon

Description: Audio Amplifiers Gen5 HVIC 200V 2Ch digital audio driver

Download IRS2052MTRPBF Model
Schematic

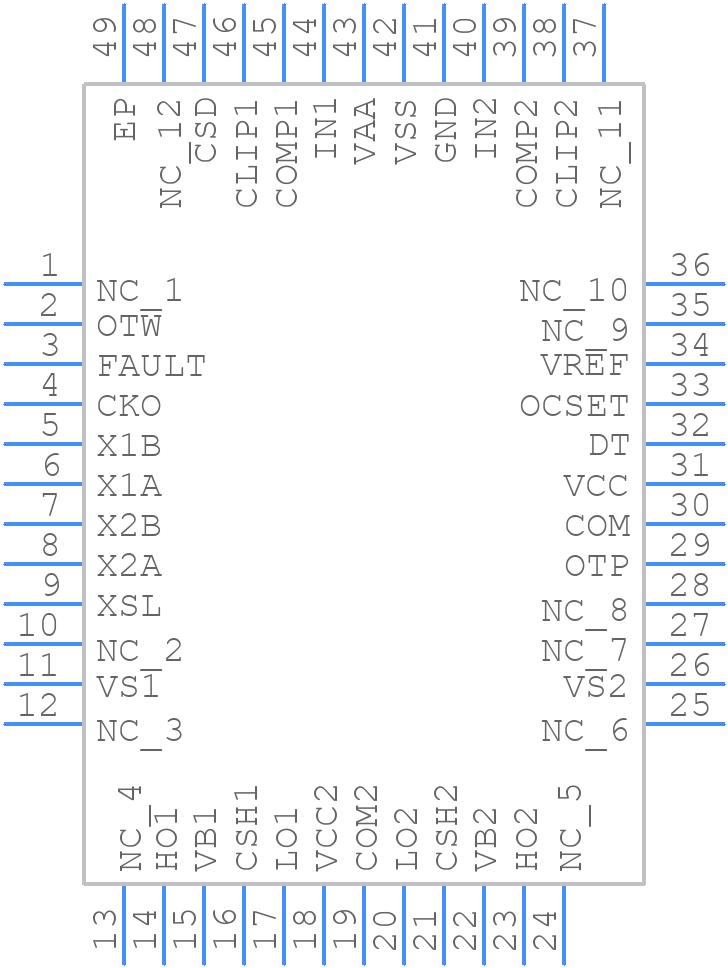

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRS2052MTRPBF - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MLPQ 7X7
click to zoom
3D Models
IRS2052MTRPBF - Infineon  - 3D model - Quad Flat No-Lead - MLPQ 7X7
click to zoom

IRS2052MTRPBF Details

  • Manufacturer Part Number:

    IRS2052MTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    7 X 7 MM, 0.50 MM PITCH, ROHS COMPLIANT, MO-220, MLPQ-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

IRS2052MTRPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • Monitor the device's temperature, voltage, and current. Implement over-temperature protection, over-voltage protection, and over-current protection to prevent damage and ensure reliable operation.
  • Use a gate drive circuit with a low impedance output stage, and ensure the gate drive voltage is within the recommended range. Optimize the gate resistance and capacitance for the specific application.
  • Use a shielded layout, minimize loop areas, and use a common mode choke to reduce EMI. Ensure the device is placed away from sensitive circuits and follow good EMC design practices.
