IS281-4 footprint, schematic symbol and 3D model by Isocom

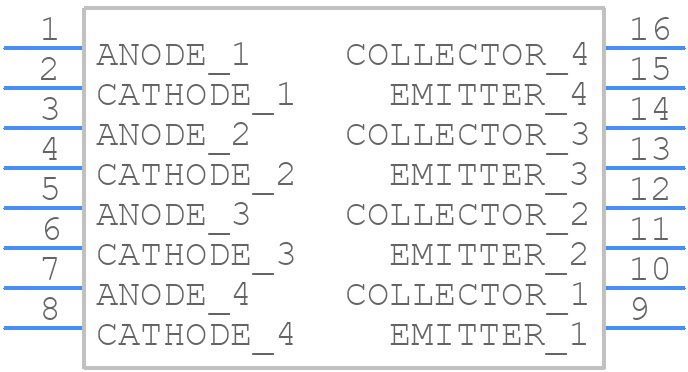

Symbol

PCB Footprints

3D Models

IS281-4 Details

The recommended storage condition for IS281-4 is in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 80%.
To prevent ESD damage, handle the IS281-4 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads.
The maximum soldering temperature for IS281-4 is 260°C for a maximum of 10 seconds. Exceeding this temperature or time may damage the component.
Yes, IS281-4 is designed to withstand moderate vibration. However, it's essential to ensure the component is properly secured to the PCB and the PCB is properly mounted to the system to minimize vibration effects.
Use a soft, dry brush to gently remove any debris or dust from the component. Avoid using chemicals, solvents, or ultrasonic cleaners, as they may damage the component.

Community Provided

System Verified

Community Approved

Use the download button to access the IS281-4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IS281, or try a keyword search, such as Optocoupler
