Description:The ISL15102 is a single port differential line driver developed for Power Line Communication (PLC) applications. The device is designed to drive heavy line loads while maintaining a high level of linearity required in Orthogonal Frequency Division Multiplexing (OFDM) PLC modem links. The ISL15102 has a disable control pin (DIS). In Disable mode, the line driver goes into Low Power mode and the outputs maintain a high impedance in the presence of high receive signal amplitude, improving TDM receive signal i
Renesas provides a recommended PCB layout in the ISL15102IRZ-T13 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal design and simulation tools to optimize the PCB layout and ensure adequate heat dissipation.
The ISL15102IRZ-T13 is designed to meet EMI and RFI standards, but it is still important to follow proper PCB layout and design practices to minimize emissions and susceptibility. This includes using shielding, filtering, and grounding techniques, as well as following the recommended layout and routing guidelines.
The ISL15102IRZ-T13 is a high-reliability device, but it is essential to follow Renesas' guidelines for use in safety-critical applications, including fault tree analysis, failure mode effects analysis, and compliance with relevant industry standards such as IEC 61508 or ISO 26262.
The ISL15102IRZ-T13 has a maximum junction temperature of 150°C, and it is essential to ensure adequate heat dissipation to prevent overheating. This includes using thermal interfaces, heat sinks, and thermal design and simulation tools to optimize the PCB layout and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL15102IRZ-T13 Overview

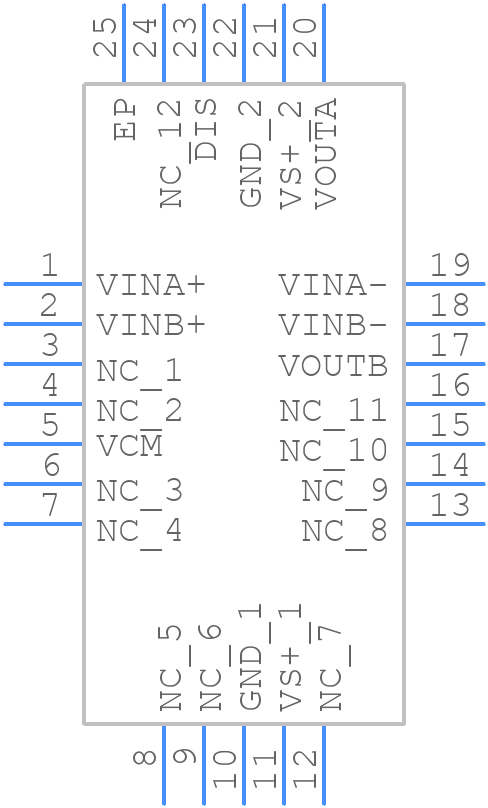

Use the download button to access the ISL15102IRZ-T13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL15,
or try a keyword search, such as Line Driver or Receivers
