Description:The ISL21010 is a precision, low dropout micropower bandgap voltage reference in a space-saving SOT-23 package. It operates from a single 2. 2V to 5. 5V supply (minimum voltage is dependent on voltage option) and provides a ±0. 2% accurate reference. The ISL21010 provides up to 25mA output current sourcing with low 150mV dropout voltage. Output voltage options include 1. 024V, 1. 2V, 1. 5V, 2. 048V, 2. 5V, 3. 0V, 3. 3V, and 4. 096V. The low supply current and low dropout voltage combined with high accuracy
A good PCB layout for the ISL21010CFH320Z-TK involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
The ISL21010CFH320Z-TK can handle a maximum input voltage of 42V, but it's recommended to operate the device within the specified input voltage range of 3.3V to 36V for optimal performance and reliability.
The ISL21010CFH320Z-TK has built-in overcurrent protection and thermal shutdown features. However, it's still important to add external protection mechanisms, such as fuses or PTC resistors, to prevent damage from excessive current or temperature. Additionally, ensuring good airflow and using a heat sink can help prevent overheating.
The ISL21010CFH320Z-TK is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal resistance when operating in high-temperature environments. It's recommended to derate the device's output current and ensure good airflow to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL21010CFH320Z-TK Overview

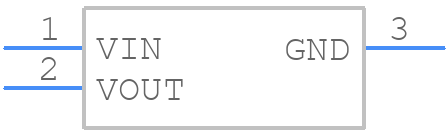

Use the download button to access the ISL21010CFH320Z-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL21,
or try a keyword search, such as Voltage References
