Description:The ISL21010 is a precision, low dropout micropower bandgap voltage reference in a space-saving SOT-23 package. It operates from a single 2.2V to 5.5V supply (minimum voltage is dependent on voltage option) and provides a ±0.2% accurate reference. The ISL21010 provides up to 25mA of output current sourcing with a low 150mV dropout voltage. Output voltage options include 1.024V, 1.2V, 1.5V, 2.048V, 2.5V, 3.0V, 3.3V, and 4.096V. The low supply current and low dropout voltage combined with high accuracy make t
A good PCB layout for the ISL21010DFH310Z-TK involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is essential to follow the recommended capacitor selection and placement guidelines, use a stable input voltage, and minimize the noise on the input and output lines. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
The maximum allowed power dissipation of the ISL21010DFH310Z-TK depends on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.5W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
The ISL21010DFH310Z-TK is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is essential to follow the recommended operating conditions and derate the device's performance accordingly.
To troubleshoot issues with the ISL21010DFH310Z-TK, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any noise or oscillations on the input and output lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL21010DFH310Z-TK Overview

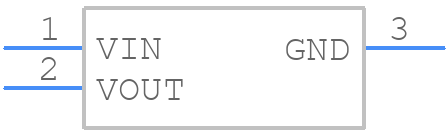

Use the download button to access the ISL21010DFH310Z-TK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL21,
or try a keyword search, such as Voltage References
