ISL31475EIBZ-T7A - Renesas Electronics

Description: The ISL31470E, ISL31472E, ISL31475E, and ISL31478E are fault protected, extended common-mode range differential transceivers that exceed the RS-485 and RS-422 standards for balanced communication. The RS-485 bus pins (driver outputs and receiver inputs) are protected against overvoltages up to ±60V. Additionally, these transceivers operate in environments with common-mode voltages up to ±15V (exceeds the RS-485 requirement), making this RS-485 family one of the more robust on the market. Transmitters delive

Download ISL31475EIBZ-T7A Model

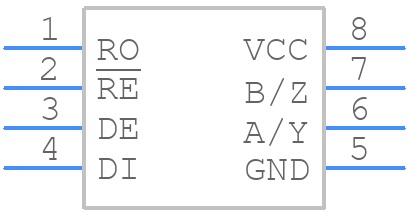

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL31475EIBZ-T7A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL31475EIBZ-T7A - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL31475EIBZ-T7A Details

  • Manufacturer Part Number:

    ISL31475EIBZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2019-02-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.8 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.022 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    125 ns

  • Width:

    3.9 mm

ISL31475EIBZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL31475EIBZ-T7A evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal protection and over-temperature shutdown mechanisms to prevent damage.
  • The ISL31475EIBZ-T7A is designed to meet EMI and RFI standards, but it's still important to follow proper PCB design and layout practices, such as using shielding, grounding, and filtering to minimize electromagnetic interference and radio-frequency interference.
  • The ISL31475EIBZ-T7A is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure that the device is properly mounted and secured to prevent mechanical stress and damage.
  • The recommended power-up sequence for the ISL31475EIBZ-T7A is to apply the power supply voltage (VCC) before applying the input signal. This ensures that the device is properly initialized and configured before operation.
