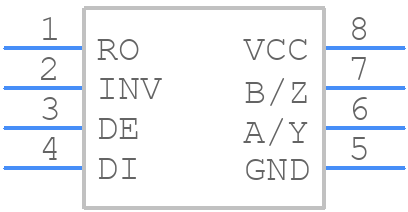

ISL31485EIBZ - Renesas Electronics

ISL31485EIBZ Details

• Manufacturer Part Number:

  ISL31485EIBZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOICN

• Package Description:

  SOIC-8

• Pin Count:

  8

• Manufacturer Package Code:

  M8.15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  2017-11-13

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Differential Output:

  YES

• Driver Number of Bits:

  1

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-485-A; TIA-485-A; EIA-422

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  0.8 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.006 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Receive Delay-Max:

  150 ns

• Receiver Number of Bits:

  1

• Seated Height-Max:

  1.75 mm

• Supply Current-Max:

  4.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Transmit Delay-Max:

  350 ns

• Width:

  3.9 mm
