Description:The ISL3159E is a ±15kV IEC61000 ESD protected, 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. It also features the larger output voltage and higher data rate (up to 40Mbps) required by high speed PROFIBUS applications, and is offered in industrial and extended Industrial (-40°C to +125°C) temperature ranges. The low bus currents (+220µA/-150µA) present a “1/5 unit load” to the RS-485 bus. This allows up to 160 transceivers on the network without v
Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines, including providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
The ISL3159EIRZ-T7A is designed to be EMI-resistant, but it is still important to follow good EMI design practices, such as using shielding, filtering, and grounding techniques to minimize the impact of EMI on the device's performance. Additionally, the device's EMI performance can be improved by using a low-pass filter on the input lines and a ferrite bead on the output lines.
While the ISL3159EIRZ-T7A is specified for operation with 3.3V or 5V power supplies, it can be used with other power supply voltages within its specified operating range (2.7V to 5.5V). However, the device's performance and functionality may be affected, and the user should consult the datasheet and application notes for guidance on using the device with non-standard power supply voltages.
To troubleshoot issues with the ISL3159EIRZ-T7A, it is recommended to follow a systematic approach, including reviewing the device's datasheet and application notes, checking the PCB layout and component values, verifying the power supply voltage and input signals, and using diagnostic tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3159EIRZ-T7A Overview

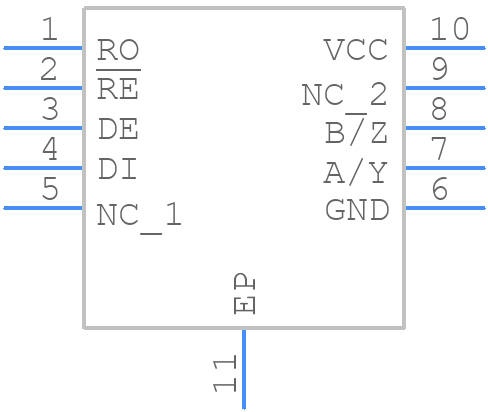

Use the download button to access the ISL3159EIRZ-T7A schematic symbol, PCB footprint, and 3D model.
