Description:The ISL3179E and ISL3180E are high ESD protected, 3. 3V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each device has low bus currents (+220μA/-150μA), so they present a “1/5 unit load” to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s 32 unit load maximum, and without using repeaters. Receiver (Rx) inputs feature a “full fail-safe” design, which ensures a logic high Rx output if Rx inpu
A good PCB layout for the ISL3180EIBZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the ISL3180EIBZ-T, use a high-quality decoupling capacitor (e.g., 0.1uF) as close to the device as possible, and connect it between the VCC pin and the GND pin. Additionally, use a 10uF capacitor in parallel with the 0.1uF capacitor to filter out high-frequency noise.
The ISL3180EIBZ-T can achieve data rates of up to 100Mbps, depending on the specific application and transmission medium. However, the actual data rate may be limited by the quality of the transmission medium, the signal-to-noise ratio, and the receiver's sensitivity.
To troubleshoot common issues with the ISL3180EIBZ-T, start by checking the power supply voltage and ensuring it is within the recommended range. Then, verify that the device is properly configured and that the transmission medium is of good quality. Use an oscilloscope to check the signal integrity and look for signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance.
The ISL3180EIBZ-T is rated for operation in industrial temperature ranges (-40°C to 85°C), but it may not be suitable for extremely harsh environments. For high-temperature or high-vibration applications, consider using a more ruggedized version of the device or taking additional measures to ensure reliability, such as using a heat sink or vibration-dampening materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3180EIBZ-T Overview

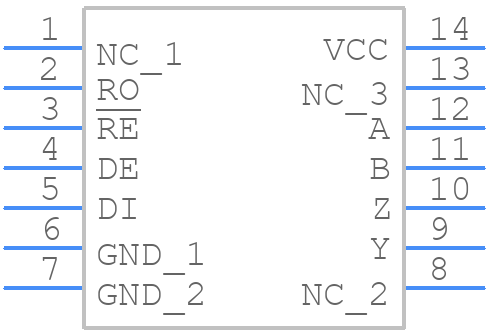

Use the download button to access the ISL3180EIBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL31,
or try a keyword search, such as Line Driver or Receivers
