Description:The ISL32172E, ISL32272E, ISL32174E, and ISL32179E are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, QUAD transmitters for balanced communication using the RS-422 standard. These drivers have very low output leakage currents (±10µA), so they present a low load to the RS-422 bus. The driver (Tx) outputs are tri-statable and incorporate a hot plug feature to keep them disabled during power-up and power-down. The ISL32172E and ISL32272E have a common EN/EN, the ISL32174E has a two channel EN12/E
A good PCB layout for the ISL32172EFVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the device operates within the specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad on the bottom of the package can be connected to a heat sink or a thermal plane on the PCB to dissipate heat efficiently.
To prevent damage, handle the device by the body and not the pins, use an anti-static wrist strap or mat, and avoid touching the pins or any exposed internal components. It's also recommended to store the device in an anti-static bag or wrap it in anti-static material when not in use.
To troubleshoot issues with the ISL32172EFVZ, start by verifying the power supply voltage and ensuring it's within the specified range. Check the input and output signals for any anomalies, and use an oscilloscope to monitor the signals. If the issue persists, consult the datasheet and application notes, and contact Renesas support if necessary.
To minimize EMI and RFI when using the ISL32172EFVZ, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure the PCB layout is optimized for EMI reduction, and use EMI-absorbing materials if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32172EFVZ Overview

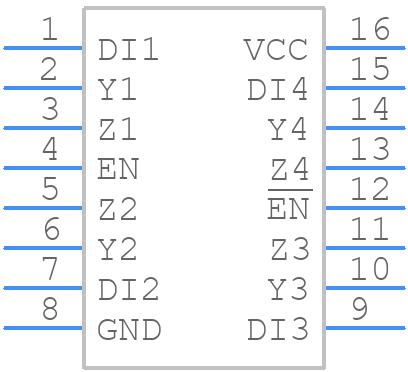

Use the download button to access the ISL32172EFVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
