Description:The ISL32172E, ISL32272E, ISL32174E, and ISL32179E are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, QUAD transmitters for balanced communication using the RS-422 standard. These drivers have very low output leakage currents (±10µA), so they present a low load to the RS-422 bus. The driver (Tx) outputs are tri-statable and incorporate a hot plug feature to keep them disabled during power-up and power-down. The ISL32172E and ISL32272E have a common EN/EN, the ISL32174E has a two channel EN12/E
A good PCB layout for the ISL32272EFVZ should prioritize signal integrity, minimize noise, and ensure proper thermal management. Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal vias.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the ISL32272EFVZ has a built-in thermal shutdown feature that protects the device from overheating.
The recommended input and output capacitors for the ISL32272EFVZ are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 6.3V or higher. These capacitors should be placed as close to the device as possible to minimize parasitic inductance and ensure proper filtering.
To configure the ISL32272EFVZ for optimal power efficiency, it's essential to select the correct output voltage, adjust the switching frequency, and optimize the inductor value. Additionally, the device has a power-saving mode that can be enabled to reduce power consumption during light-load conditions.
Possible causes of oscillation or instability in the ISL32272EFVZ include improper PCB layout, inadequate input and output capacitors, incorrect inductor value, and insufficient decoupling. Other causes may include high-frequency noise, voltage spikes, or incorrect configuration of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32272EFVZ Overview

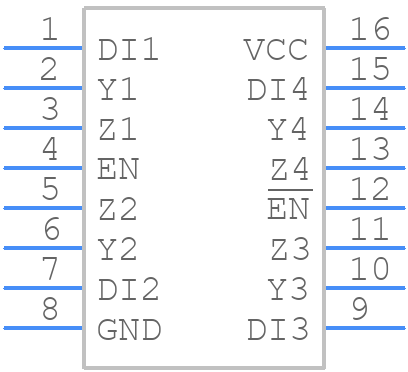

Use the download button to access the ISL32272EFVZ schematic symbol, PCB footprint, and 3D model.
