Description:These Renesas devices are ±16. 5kV IEC61000-4-2 ESD protected, 3. 0V to 5. 5V powered, quad receivers for balanced communication using the RS-485 and RS-422 standards. Each receiver has low input currents (±200μA), so it presents a 1/4 unit load to the RS-485 bus and allows up to 128 receivers on the bus. The ISL32173E and ISL32177E are high data rate receivers that operate at data rates up to 80Mbps. Their 8ns maximum propagation delay skew (tolerance) ensures excellent part-to-part matching. The ISL32273E
The recommended PCB layout for optimal performance involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces to reduce noise and EMI.
To ensure reliable operation over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal hotspots. Additionally, it's recommended to operate the device within the specified operating temperature range and to avoid exposing it to extreme temperatures during storage or handling.
Using a lower supply voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential instability. Using a higher supply voltage may result in increased power consumption, reduced reliability, and potential damage to the device. It's recommended to operate the device within the specified supply voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the device's I2C interface, start by verifying the I2C bus voltage levels, clock frequency, and signal integrity. Check for proper termination, pull-up resistors, and bus loading. Use an oscilloscope or logic analyzer to monitor the I2C bus signals and identify any errors or anomalies. Consult the datasheet and application notes for specific guidance on I2C interface troubleshooting.
The ISL32273EIBZ-T has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage or overcurrent conditions. However, it's still recommended to follow proper ESD handling and storage procedures to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32273EIBZ-T Overview

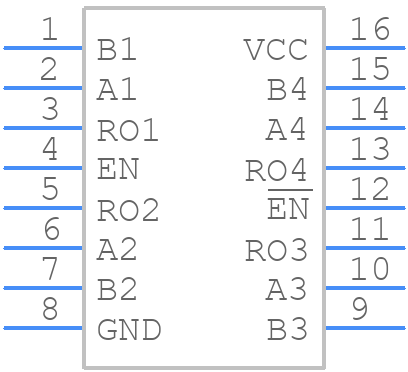

Use the download button to access the ISL32273EIBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
