Description:The Intersil ISL324xE devices are 2. 7V to 3. 6V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are POS systems, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with
A good PCB layout for the ISL3243EIRZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the ISL3243EIRZ-T operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 2.7V and 5.5V, keep the ambient temperature between -40°C and 125°C, and avoid exceeding the maximum ratings for input and output currents.
To minimize EMI and RFI when using the ISL3243EIRZ-T, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke or ferrite bead on the power supply lines, and ensure good PCB layout practices such as minimizing loop areas and using a solid ground plane.
To troubleshoot issues with the ISL3243EIRZ-T, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input and output voltages using an oscilloscope, and verify that the device is properly connected to the load and power supply. Also, check for any signs of overheating or physical damage to the device.
The ISL3243EIRZ-T's limited short-circuit protection means that it may not be able to withstand continuous short-circuit conditions. Therefore, it's essential to design your system to prevent or quickly detect and respond to short-circuit conditions to avoid damaging the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3243EIRZ-T Overview

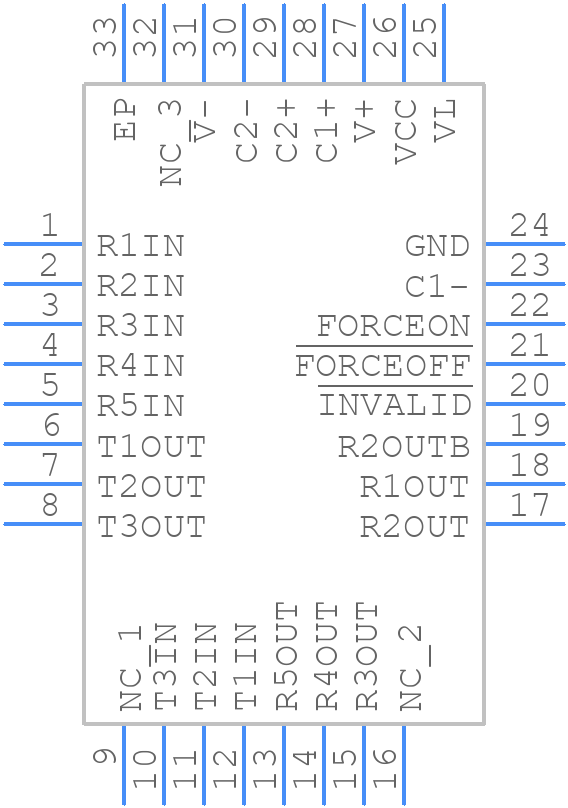

Use the download button to access the ISL3243EIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
