Description:The ISL3247xE are fault-protected, extended common-mode range differential transceivers that exceed the RS-485 and RS-422 standards for balanced communication. The RS-485 bus pins (driver outputs and receiver inputs) are fault protected against overvoltages up to ±60V and are protected against ±16. 5kV ESD strikes without latch-up. Additionally, these transceivers operate in environments with common-mode voltages up to ±15V (exceeds the RS-485 requirement), making this fault-protected RS-485 family one of t
A good PCB layout for the ISL32470EIBZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device close to the signal sources and to use a low-ESR capacitor for power decoupling.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, ensure that the device is operated within its specified temperature range and that the power supply is stable and regulated.
Operating the ISL32470EIBZ at a lower supply voltage than recommended may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher supply voltage than recommended may cause the device to exceed its maximum ratings, leading to permanent damage or failure.
To troubleshoot issues with the output signal, start by verifying that the input signal is correct and that the device is properly configured. Check for proper power supply and ground connections, and ensure that the output is not overloaded or short-circuited. Use an oscilloscope to analyze the output signal and look for signs of distortion, noise, or oscillation.
The ISL32470EIBZ has built-in ESD protection diodes on its input and output pins, which can withstand electrostatic discharges up to ±8kV. To prevent latch-up, it's essential to follow proper handling and storage procedures, avoid overvoltage conditions, and ensure that the device is operated within its specified voltage and current ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32470EIBZ Overview

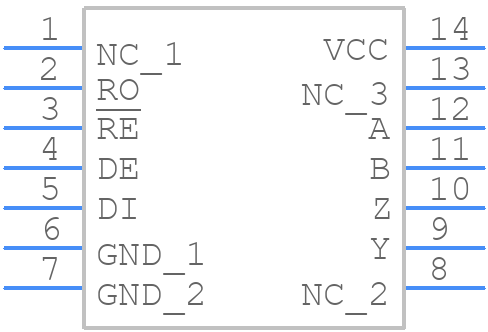

Use the download button to access the ISL32470EIBZ schematic symbol, PCB footprint, and 3D model.
