Description:The ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, and ISL32498E are fault protected, 5V powered, differential transceivers that exceed the RS-485 and RS-422 standards for balanced communication. The RS-485 transceiver pins (driver outputs and receiver inputs) are fault protected up to ±60V and are protected against ±16. 5kV ESD strikes without latch-up. Additionally, the extended Common-Mode Range (CMR) allows these transceivers to operate in environments with common-mode voltages up to ±25V (>2x t
A good PCB layout for the ISL32498EIBZ-T7A involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated analog ground plane is recommended.
To ensure reliable communication in noisy environments, use a common-mode choke or ferrite bead on the RS-485 bus, and consider using a shielded cable. Also, ensure that the transmitter and receiver are properly terminated, and use a baud rate that is suitable for the application.
The maximum cable length for reliable communication using the ISL32498EIBZ-T7A depends on the baud rate, cable quality, and noise environment. As a general guideline, cable lengths up to 4000 feet (1219 meters) are possible at lower baud rates (e.g., 9600bps), while shorter cable lengths (e.g., 1000 feet or 305 meters) are recommended for higher baud rates (e.g., 115200bps).
To handle hot-swapping or live-plugging of RS-485 devices, use a transceiver with built-in protection against overvoltage and overcurrent, such as the ISL32498EIBZ-T7A. Additionally, consider using a bus-termination scheme that can handle the inrush current during hot-swapping, and ensure that the system can tolerate the brief disruption in communication during the hot-swap event.
The ISL32498EIBZ-T7A has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range (–40°C to 85°C) and ensure good airflow around the device. Use a heat sink or thermal pad if necessary, and avoid blocking airflow around the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32498EIBZ-T7A Overview

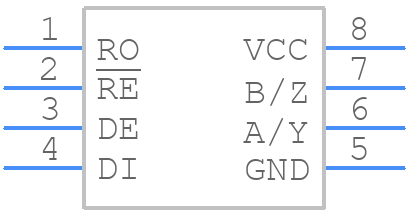

Use the download button to access the ISL32498EIBZ-T7A schematic symbol, PCB footprint, and 3D model.
