Description:The ISL3259E is a ±15kV IEC61000 ESD Protected, 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. It also features the larger output voltage and higher data rate (up to 100Mbps) required by high speed PROFIBUS applications. The low bus currents (+220μA/-150μA) present a 1/5 unit load to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s load limit, and without using repeaters. This transceive
A good PCB layout for the ISL3259EIRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper power-up and initialization, apply power to the device in the following sequence: VCC, then VDD, and finally the input signals. Also, make sure to follow the recommended power-up timing and voltage ramp rates specified in the datasheet.
When selecting external capacitors for the ISL3259EIRZ, consider the capacitor's equivalent series resistance (ESR), voltage rating, and temperature coefficient. Choose capacitors with low ESR, a voltage rating that exceeds the maximum operating voltage, and a temperature coefficient that matches the application's operating temperature range.
To troubleshoot issues with the ISL3259EIRZ, start by verifying the power supply voltages, checking for proper grounding and decoupling, and ensuring that the input signals are within the specified range. Use an oscilloscope to monitor the output signals and check for any signs of oscillation or instability.
To manage the thermal performance of the ISL3259EIRZ, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Also, follow the recommended thermal design guidelines and thermal resistance calculations provided in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3259EIRZ Overview

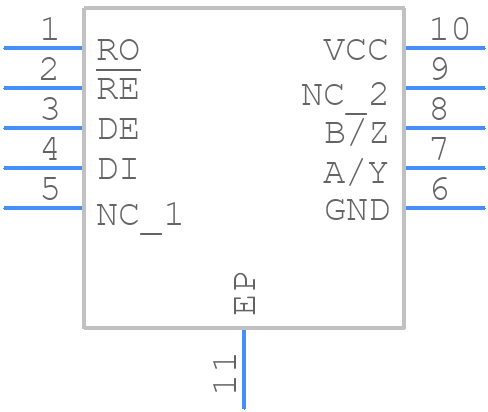

Use the download button to access the ISL3259EIRZ schematic symbol, PCB footprint, and 3D model.
