Description:The ISL32705E is a galvanically isolated, full-duplex differential bus transceiver, designed for bidirectional data transmission meeting the RS-485 and RS-422 standards for balanced communication. All bus terminals are protected against ±7kV ESD strikes without latch-up. The device uses Giant Magnetoresistance (GMR) as isolation technology. A unique ceramic/polymer composite barrier provides excellent isolation and nearly unlimited barrier life. The part is available in a 16 Ld wide-body SOIC package provid
Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The ISL32705EIBZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the device has a thermal shutdown feature that turns off the output when the junction temperature exceeds 150°C.
The maximum cable length supported by the ISL32705EIBZ depends on the specific application and the type of cable used. However, as a general guideline, Renesas recommends keeping the cable length below 10 meters to ensure reliable data transmission.
While the ISL32705EIBZ is designed for RS-485 applications, it can be used in other differential signaling applications with proper configuration and consideration of the device's electrical characteristics. However, it's essential to consult with Renesas support or a qualified engineer to ensure the device meets the specific application requirements.
Renesas provides a troubleshooting guide in the application note AN1995, which covers common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and logic analyzers to debug the system and identify the root cause of the problem.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32705EIBZ Overview

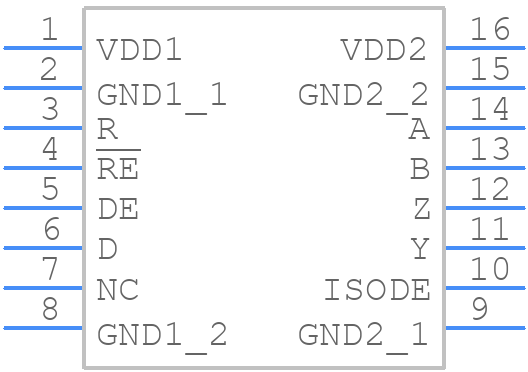

Use the download button to access the ISL32705EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Switching Regulator or Controllers
