Description:The ISL32740E is a galvanically isolated high-speed differential bus transceiver, designed for bidirectional data communication on balanced transmission lines. The device uses giant magnetoresistance (GMR) as its isolation technology. The part is available in a 16 Ld QSOP package offering unprecedented miniaturization, and in a 16 Ld SOICW package providing a true 8mm creepage distance. The ISL32740E is PROFIBUS compliant, including the rigorous PROFIBUS differential output voltage specifications. A unique
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The ISL32740EIBZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Renesas recommends using a thermal via array or a thermal pad connected to a ground plane to keep the junction temperature below 125°C.
The ISL32740EIBZ supports cable lengths up to 100 meters, but the actual maximum length depends on the specific application, cable quality, and signal frequency. Renesas recommends using a cable with a characteristic impedance of 100 ohms and a maximum capacitance of 100 pF/m.
The ISL32740EIBZ supports multiple data rates, including 100 Mbps, 1 Gbps, and 2.5 Gbps. The device can be configured for different data rates using the RATE_SEL pins or through the SPI interface. Renesas provides a detailed configuration guide in their datasheet and application notes.
The ISL32740EIBZ has a typical power consumption of 350 mW at 1 Gbps and 550 mW at 2.5 Gbps. The actual power consumption depends on the specific application, data rate, and operating conditions. Renesas provides a detailed power consumption table in their datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32740EIBZ Overview

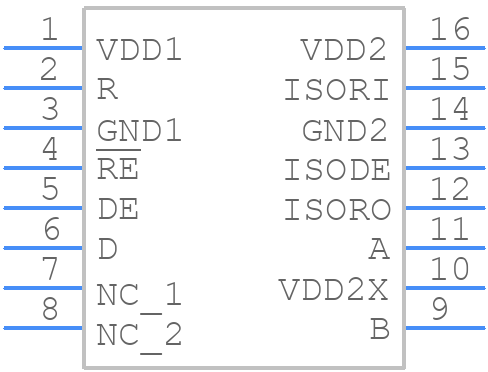

Use the download button to access the ISL32740EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
