Description:The ISL32743E is a galvanically isolated high-speed differential bus transceiver, designed for bidirectional data communication on balanced transmission lines. The device uses Giant Magnetoresistance (GMR) as its isolation technology. The part is available in a 16 Ld SOICW package providing a true 8mm creepage distance. A unique ceramic/polymer composite barrier provides excellent isolation and 44, 000 years of barrier life. The device is compatible with 3V and 5V input supplies, allowing an interface to st
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The ISL32743EIBZ has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Renesas recommends using a thermal via array or a thermal pad connected to a ground plane to ensure effective heat dissipation.
The ISL32743EIBZ supports cable lengths up to 100 meters, but the actual maximum length may vary depending on the specific application, cable quality, and environmental conditions. Renesas recommends using high-quality cables and following proper cable termination and routing practices to ensure reliable operation.
The ISL32743EIBZ supports multiple data rates, including 100Mbps, 1Gbps, and 2.5Gbps. The device can be configured for different data rates using the RATE_SEL pins or through the I2C interface. Renesas provides detailed configuration guidelines in their datasheet and application notes.
The ISL32743EIBZ has a typical power consumption of 350mW at 1Gbps data rate, but the actual power consumption may vary depending on the specific application, data rate, and operating conditions. Renesas provides detailed power consumption data in their datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL32743EIBZ Overview

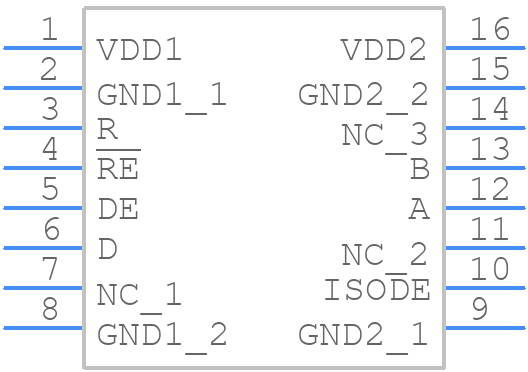

Use the download button to access the ISL32743EIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL32,
or try a keyword search, such as Line Driver or Receivers
