Description:This device is a BiCMOS interface IC that is user-configured as either a single RS-422/RS-485 differential transceiver or as a dual (2 Tx, 2 Rx) RS-232 transceiver. In RS-232 mode, the on-board charge pump generates RS-232 compliant ±5V Tx output levels, from a supply as low as 3.15V. Four small 0.1µF capacitors are required for the charge pump. The transceivers are RS-232 compliant, with the Rx inputs handling up to ±25V. In RS-485 mode, the transceivers support both the RS-485 and RS-422 differential comm
A good PCB layout for the ISL3331IRZ-T involves keeping the input and output traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and power-down of the ISL3331IRZ-T, it's recommended to follow a controlled power-up sequence, where the input voltage is ramped up slowly (typically 10-20 ms) to prevent inrush currents. During power-down, the input voltage should be ramped down slowly as well.
The ISL3331IRZ-T has a thermal pad that should be connected to a solid ground plane to dissipate heat efficiently. Additionally, the device should be placed in a well-ventilated area, and the PCB should be designed to minimize thermal resistance. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
To troubleshoot issues with the ISL3331IRZ-T, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to check the output voltage and current waveforms, and verify that the device is operating within its specified parameters. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
To minimize EMI and EMC issues with the ISL3331IRZ-T, use a shielded enclosure, and ensure that the PCB is designed with EMI reduction in mind (e.g., using a solid ground plane, minimizing trace lengths, and using EMI filters). Additionally, follow proper PCB layout and routing guidelines, and use EMI-absorbing materials if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL3331IRZ-T Overview

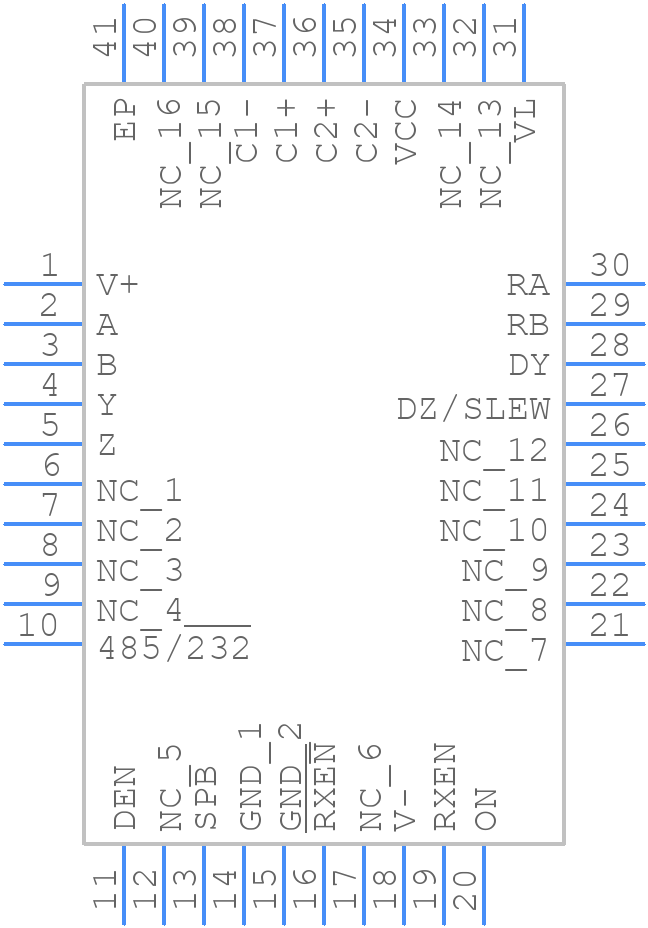

Use the download button to access the ISL3331IRZ-T schematic symbol, PCB footprint, and 3D model.
