ISL41387EVAL1Z footprint, schematic symbol and 3D model by Renesas Electronics

ISL41387EVAL1Z - Renesas Electronics

Description: The RoHS compliant ISL41387EVAL1Z evaluation board provides a quick and easy method for evaluating the ISL41387 dual protocol, BiCMOS, interface IC. The board also accommodates the ISL41334 two-port, dual protocol, interface ICThis board was designed to allow the user to evaluate all the features available on the ISL81387 and ISL41387 multiprotocol interface products. The ISL41387 is the full featured version where the QFN package's increased pin count gives the user access to functionality not available on

Download ISL41387EVAL1Z Model

Schematic
symbols

PCB
footprints

3D
models

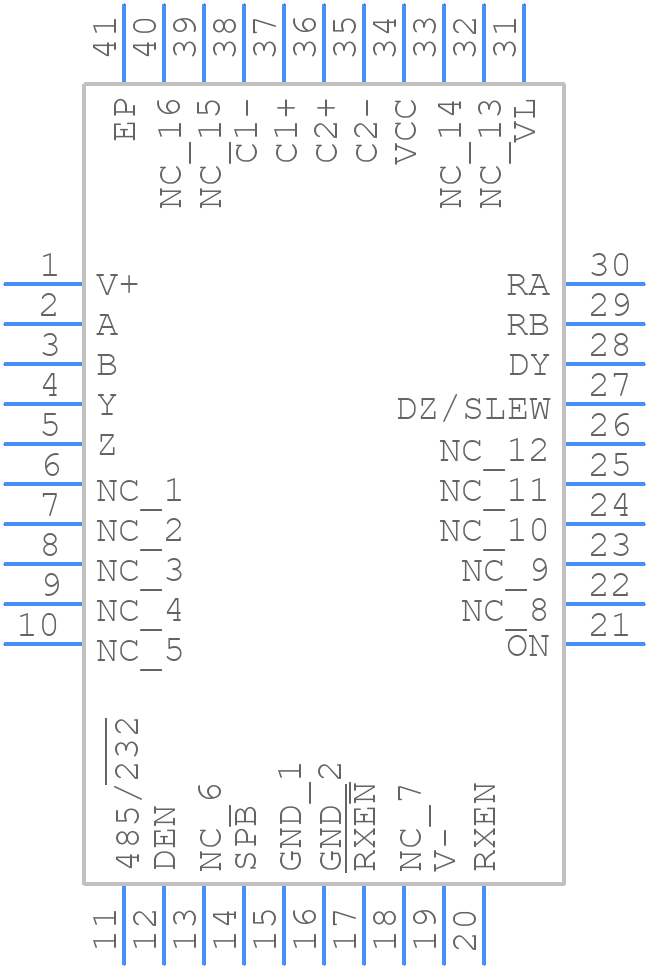

Symbol

click to zoom

PCB Footprints

ISL41387EVAL1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L40.6x6 1

click to zoom

3D Models

ISL41387EVAL1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L40.6x6 1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL41387EVAL1Z
Part Number ISL41387EVAL1Z
Manufacturer Renesas Electronics
Pin Count 41
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L40.6x6 1
Released Date Apr 4, 2021
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL41387EVAL1Z Details

Manufacturer Part Number:
ISL41387EVAL1Z
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL41387EVAL1Z Overview

Use the download button to access the ISL41387EVAL1Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL41, or try a keyword search, such as Line Driver or Receivers
